| LC2210-AN-IR1 | |
| Camera | |
| Image Sensor | 1/2.8’’ Progressive Scan CMOS |
| Pixels | 2.1 Megapixel |
| Min. Illumination | Color: 0.05Lux @ (F1.6, AGC ON) |
| B/W: 0Lux with IR | |
| Shutter Speed | 1/10 ~ 1/10,000S |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Digital WDR |
| S/N Ratio | >50dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / BLC / WDR |
| Lens | |
| Mount Type | M12 |
| Focal Length | 2.8mm(-IR1) |
| Adjustment Range | Pan: 0° ~ 360° / Tilt: 0° ~ 85° / Rotation: 0° ~ 360° |
| Infrared | |
| IR LED | 1pcs IR LED |
| IR Distance | 30m |
| IR Intensity | SMART IR |
| Video | |
| Compression Format | H.264 / MJPEG |
| Image Resolution | Main stream: 1080p |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 1080p@30fps |
| Secondary stream: D1@30fps | |
| Bitrate | 64kbps ~ 8Mbps |
| Bitrate Control | VBR / CBR |
| Dual Streams | Support |
| Caption | Date&Time / Alarm / Customized groups (Support up to 64 characters) |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| Video Freeze | Support |
| Digital Noise Reduction | 3D noise reduction |
| Image Flip | Flip / Mirror / Rotation 90°,180°,270° |
| Network | |
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP |
| User Interface | IPC Control Client / Web IPC Control |
| Max. User Access | 10 Users |
| Application Program | Onvif, GB/T 28181-2011, API |
| Alarm | |
| Alarm Triggers | Motion detection |
| Alarm Events | Alarm caption / Snapshot |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Memory slot | TF card slot, support 64GB |
| Environmental | |
| Operating Temperature | -30°C ~ 60°C / -22°F ~ 140°F |
| Operating Humidity | 10% ~ 95% |
| Protection level | IP66 |
| Electrical | |
| Power | 12V DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption | Max. 11W |
| Mechanical | |
| Weight | 1Kg / 2.2lb (Gross Weight) |
| Dimensions | Φ131.4 × 95.6mm / Φ5.17’’ x 3.76’’ |
2 Mp Kamera, Güvenlik Kamera, IP Kamera, Kameralar

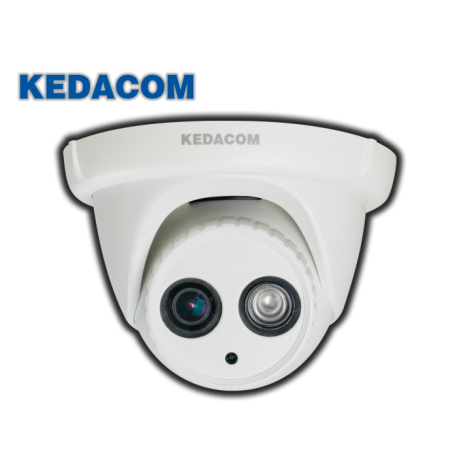

Kedacom LC2210-AN-IR1
Excellent Image Quality
2.1 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
High definition and smooth picture, 1080p@30fps
