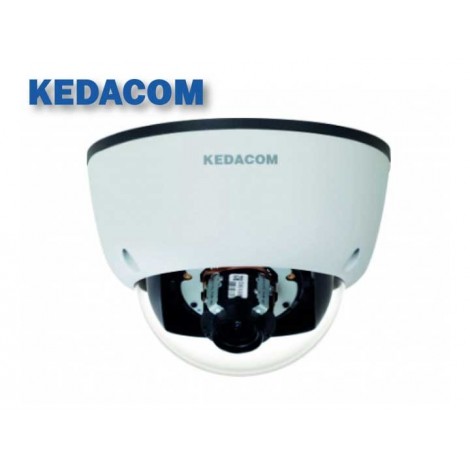

| Model No: | IPC2231-HN-S |
| Camera | |
| Image Sensor | 1/3’’ Progressive Scan CMOS |
| Pixels | 2.0 Megapixel |
| Min. Illumination | Color: 0.03Lux @ (F1.4, AGC ON) |
| B/W: 0.003Lux @ (F1.4, AGC ON) | |
| Shutter Speed | 1/10 ~ 1/10,000S |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Digital WDR |
| S/N Ratio | >52dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / BLC / WDR / HLC |
| Defog | Support |
| Lens | |
| Mount Type | -Z3009: Φ14 -L0200 / -L0220: M12 |
| Auto Iris | -Z3009: DC drive -L0200 / -L0220: Fixed |
| Focal Length | -Z3009: 2.8~12mm @ F1.4 motorized varifocal lens -L0200: 2mm -L0220: 2.2mm |
| Focus Control | -Z3009:Manual / Semi-Automatic / Auto -L0200 / -L0220: Fixed |
| Adjustment Range | Pan: 0° ~ 355° / Tilt: 0° ~ 75° / Rotation: 0° ~ 355° |
| Video | |
| Compression Format | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 1080p |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 1080p@30fps |
| Secondary stream: D1@30fps | |
| Bitrate | 32kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Multi Stream | Support |
| Caption | Date&Time / Alarm / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| Video Freeze | Support |
| ROI | Support |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Support |
| Image Flip | Flip / Mirror / Rotation 90°,180°,270° |
| Audio | |
| Compression Format | G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
| Bitrate | 32kbps ~ 64kbps |
| Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
| Network | |
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface | IPC Control |
| Max. User Access | 10 Users (include 2 internal access) |
| Application Program | Onvif, GB/T 28181-2011, API, CGI |
| ANR | Support |
| Alarm | |
| Alarm Triggers | Motion detection / Shield area / Network disconnect / Disk full / Disk error |
| Alarm Events | Alarm report / Recording / Alarm caption / Snapshot / External output / Email notice / Audio output |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Audio In / Out | 2 x Line in / 1 x Line out |
| Control | 1 x RS485 |
| Alarm In / Out | 1 x Input / 1 x Output |
| Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
| Memory Slot | TF card slot, support 128GB |
| Power Output | 1 x DC12V / 0.1A Output |
| Environmental | |
| Operating Temperature | -30°C ~ 60°C / -22°F ~ 140°F |
| Operating Humidity | 10% ~ 95% |
| Protection Level | IK10+ @50J, IP67 |
| Electrical | |
| Power | AC24V±10% / DC12V ± 10% / PoE (IEEE802.3af) |
| Power Consumption | Max. 11W |
| Mechanical | |
| Weight | 1Kg / 2.2lb (Gross Weight) |
| Dimensions | Φ155.8 × 125.9mm / Φ6.14’’ x 4.96’’ |
