| System | ||
| Main Processor | Dual-core embedded processor | |
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| IP Camera Input | 32 channel | |
| Two-way Talk | 1 channel Input, 1 channel Output, BNC | |
| Display | ||
| Interface | 1 HDMI, 1 VGA, 1 TV | |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 & etc. | |
| Display Split | 1/4/8/9/16/25/36 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Compression | H.264/MJPEG | |
| Resolution | 1080p(1920×1080) / 720p(1280×720) / D1(704×576/704×480) & etc. | |
| Record Rate | 192Mbps | |
| Bit Rate | 48~ 8192kbps | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection & Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Alarm Input | 16 channel | |
| Relay Output | 6 channel | |
| Playback & Backup | ||
| SyncPlayback | 1/4/9/16 | |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | |
| Network | ||
| Ethernet | 1 RJ-45 port (10/100/1000Mbps) | |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | ||
| Internal HDD | 4 SATA ports (4HDDs or 2HDDs+1CD/DVD-RW), up to 16TB | |
| External HDD | 1 eSATA port | |
| Auxiliary Interface | ||
| USB | 3 ports (2 Rear), USB2.0 | |
| RS232 | 1 port, For PC communication & Keyboard | |
| RS485 | 1 port, For PTZ control | |
| General | ||
| Power Supply | AC 100~240V, 50/60 Hz | |
| Power Consumption | NVR: 40W (without HDD) PoE: Max 15W (each) |
|
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | |
| Dimension (W×D×H) |
1.5U, 440mm×407mm×70mm | |
| Weight | 5kg (without HDD) | |
32 Kanal NVR, Nvr Kayıt Cihazı

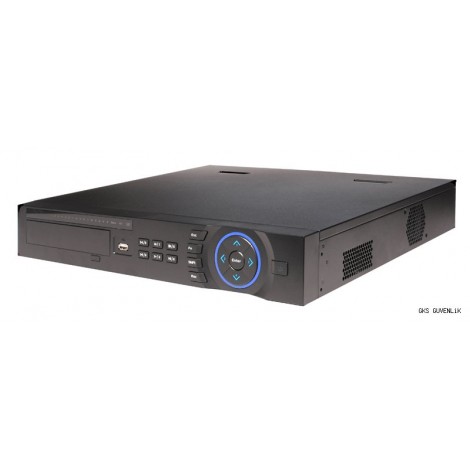

Neutron NVR7432 Nvr Kayıt Cihazı
Neutron NVR7432 Nvr Kayıt Cihazı
0.00 $
