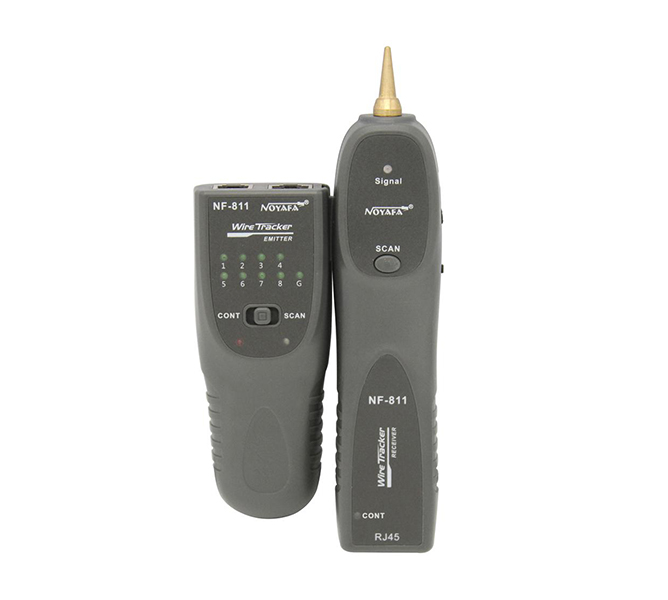

Noyafa NF-811 Tone generator and probe kit

NOYAFA

Noyafa NF-515 Wall detector scanner Gks Güvenlik tarafından satışa sunulmaktadır. Ürün hakkında Detaylı bilgi almak için bizimle iletişime geçebilirsiniz.

Noyafa NF-811 Tone generator and probe kit

Is_customized: Yes
Place of Origin: Shenzhen.China
Main Function: trace RJ11 RJ45 cables
Other function: detect status of telephone lines
Power supply:  9V bettery.
Warranty: 1 year

1. Tone trace the required line among numerous ones, perfect for tracking RJ11, RJ45, cables or other metal wire (via adapter)
2. It testes physical connection status of network cable, such as open circuit, short connection, miswire and reverse connection
3. Use the emitter to test the status of working of telephone lines, such as judging TIP or PING line and judging whether the telephone line is idle, ringing or off-hook
4. Highlights for 60V endurable, users can track wires which is in low-electricity less than 60V without burnout or damaged.
5. Clips allow easy access to individual pairs and RJ11 RJ45 easily connect to telephone jacks—no need for adapters
6. Used on single conductors, twisted pairs, telephone cable and electrical wiring, a practical tool for service providers in network infrastructure installation, certification, and troubleshooting

Transmitter Specifications
Dual Tone Frequency 1 kHz
Max. distance of transmission 2km
Max. working current 30mA
Compatible connectors RJ11, RJ45
Max. signal voltage 8Vp-p
Function Display Led for wiremap, tone for trace
Voltage protection DC 60V
Battery Type DC9.0 Vx1pc
Dimension (LxWxD) 130 x 47x 35mm
NF-811 Receiver Specification
Tone Frequency 1 kHz
The max. working current 90mA
Earphone Jack 1
Battery Type DC9.0V x 1pc
Dimension (LxWxD) 180x45x30mm
Accessories Included
Tone Generator 1 pcs
Amplifer probe 1 pcs
User Manual 1 pcs
9V battery 2 pcs
Earphone 1 pcs
Carry Bag 1 pcs
Gift box 1 pcs
