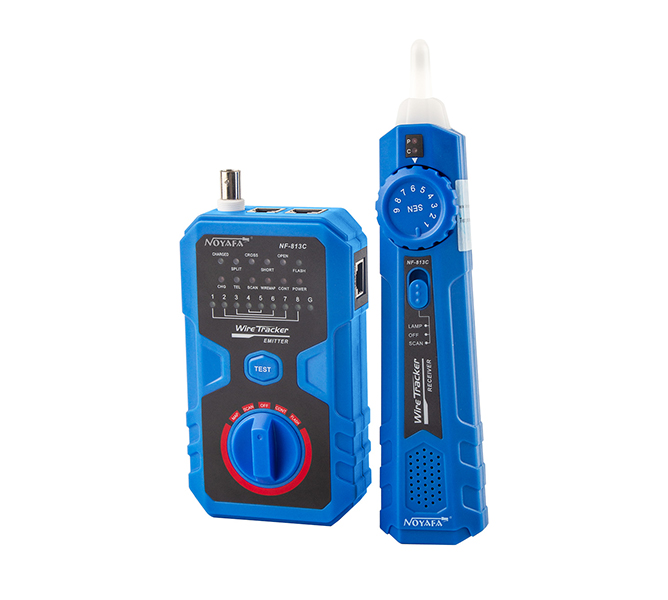

Noyafa NF-813C Multifunctional cable tracker


Noyafa NF-813C Multifunctional cable tracker Gks Güvenlik tarafından satışa sunulmaktadır. Ürün hakkında Detaylı bilgi almak için bizimle iletişime geçebilirsiniz.

Noyafa NF-813C Multifunctional cable tracker

1. Quickly finding the required line pairs among numerous ones.
2. Trace cable with continuous and clear tone, AC Current rejection.
3. It tests physical connection status of network cable, such as open , short , miswire and split connection
4. Port flash function directly find target cables connected with switch.
5. Telephone Line Test: judging TIP or PING line and judging whether the telephone line is idle, ringing or off-hook.

LED indicates connections and faults .
Flashing assists use in dark corneres of the receiver .
Rotary switch choose the function easily
Test crosstalk when wiremapping.

Transmitter Specifications
The mas distance of cable mapping 305m
Cable test types 130kHz
Tone Mode 2 tones adjustable
Max. signal voltage 8Vp-p
Max  distance of transmission 600m for RJ45 & RJ11 cable
100m for BNC cable
Proteced against voltage DC48V, 5mA
Battery Type 1.5V AA Battary
Size (mm) 135x78x35mm
NF-813C Receiver Specification
Port RJ45-8P
AC Filter no
Battery type 3.7V lithium battery
Size (mm) 203x45x33mm
Accessories Included
Earphone 1 set
RJ45 adaptör cable 1 set
RJ11 adaptör cable 1 set
Cable clip 1 set
Charging adaptör 1 set
Accessories Included
Earphone x 1 set
RJ45 adaptor cablex 1 set
Cable clip x 1 set
Charging adaptor x 1 set
