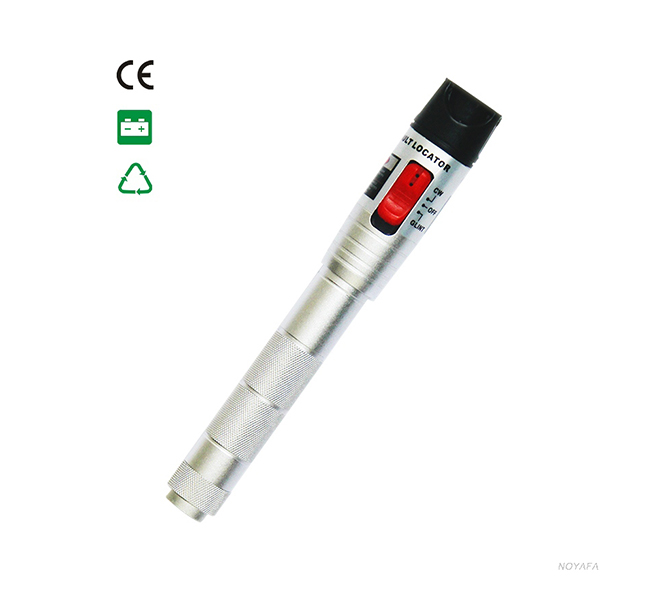

Noyafa NF-904 Visual Fault Locato
Is_customized : Yes
Place of Origin : Shenzhen.China
Interface: FC ( ST/SC/LC interchangeable)
Wavelength: 800-1700nm
Power : 1.5V x 3pcs
NF-904 VFL are compact but powerful Visual Fault Locator, be used to locate sharp bends & breaks in jacked or bare fiber.
It could also be used to identify the connectors in patch panels and identify the fibers during splicing operation.
1. Locating the fault of fiber breakage, winding and so on
2. End-to-end fiber recognition.
3. Pulsed and CW operation
4. 2.5mm universal connector, no need of complex adaptor
5. Rugged and weatherproof design
| Transmitter Specifications | ||||
| Wavelenth (nm) | 650±10nm | |||
| Operation Mode | Pulsed (2Hz) and CW | |||
| Fiber Type | SM/MM | |||
| Connector | 2.5mm unıversal | |||
| Output power | 5mW | 10mW | 20mW | 30mW |
| Working Temp | -20 ~ +60 ℃ （no dew) | |||
| Storage Temp | -40 ~ +85 ℃ | |||
| Power Supply | 1.5V battery | |||
| User Manual | 1 pc | |||
| Case | 1 pc | |||
| Color box | 1 pc | |||
| Accessories Included | ||||
| When the LD working, do not exposure eyes to laser, which is harmful | ||||
| The head of fiber must be cleared up while the LED operates | ||||
| If don’t use this light source, pls screw on the dust cap in case the dust falls into | ||||
| Take out the batteries when you don’t use it | ||||
