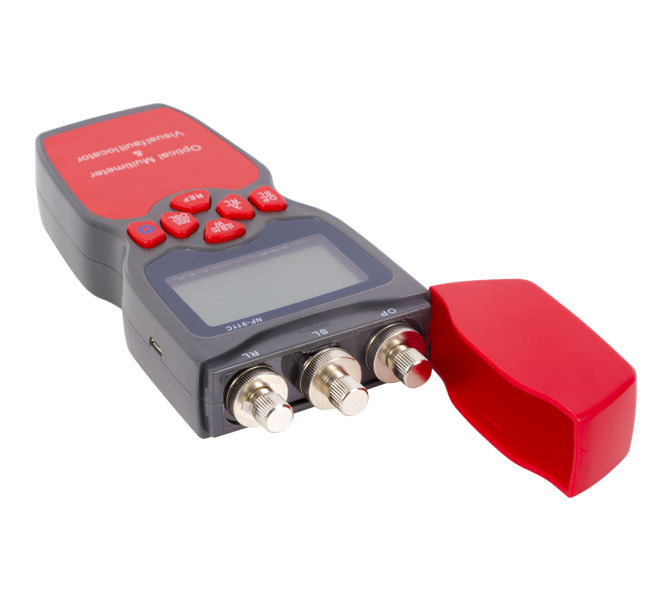

upTech NF-911C 3-in-1 Optical Multimeter
- Measurement of the power of optical sender (dBm and W).
- Insertion loss test of optical devices.
- Light source function
- Check fiber breakage, winding,ect.
- New REF user-defined.
- FC/SC/ST general-purpose interface.
- Wavelength:850/1300/1310/1490/1550/1625nm(powermeter)
- Wavelength:1310 / 1550nm( light source)
- Wavelegnth: 650nm (VFL)
| Model | NF-911 | ||
| Power meter | Power detecting range(dBm) | -70 ~ +10 | -50 ~ +26 |
| Wavelenth (nm) | 800-1700 | ||
| Probe | InGaAs | ||
| Detection limit | ∮1.0mm | ||
| Standard wavelenth | 850, 1300, 1310, 1490, 1550, 1625nm | ||
| Display resolution | 0.01dBm | ||
| Light source | Modulation frequencies | CW/270Hz,1KHz,2KHz | |
| Standard wavelenth | 1310, 1550nm | ||
| Emitter type | FP-LD | ||
| VFL | Emmiting Energy | 5mw/ 10mw/ 20mw/ 30mw selectable | |
| Standard wavelenth | 650±10nm | ||
| Working temp | -20 ~ +70℃ | ||
| Power supply | 1.5V*3pcs | ||
| Overall dimension | 160x75x32mm | ||
